CNC Routing vs. Laser Cutting for Plastic: Which Is Better?

CNC routing is a subtractive mechanical process — a rotating cutting tool physically contacts the plastic and shears away material. It can cut virtually any thermoplastic in any thickness, and can perform operations laser cutting cannot: pocketing, profiling at varying depths, drilling, and three-dimensional surface contouring.

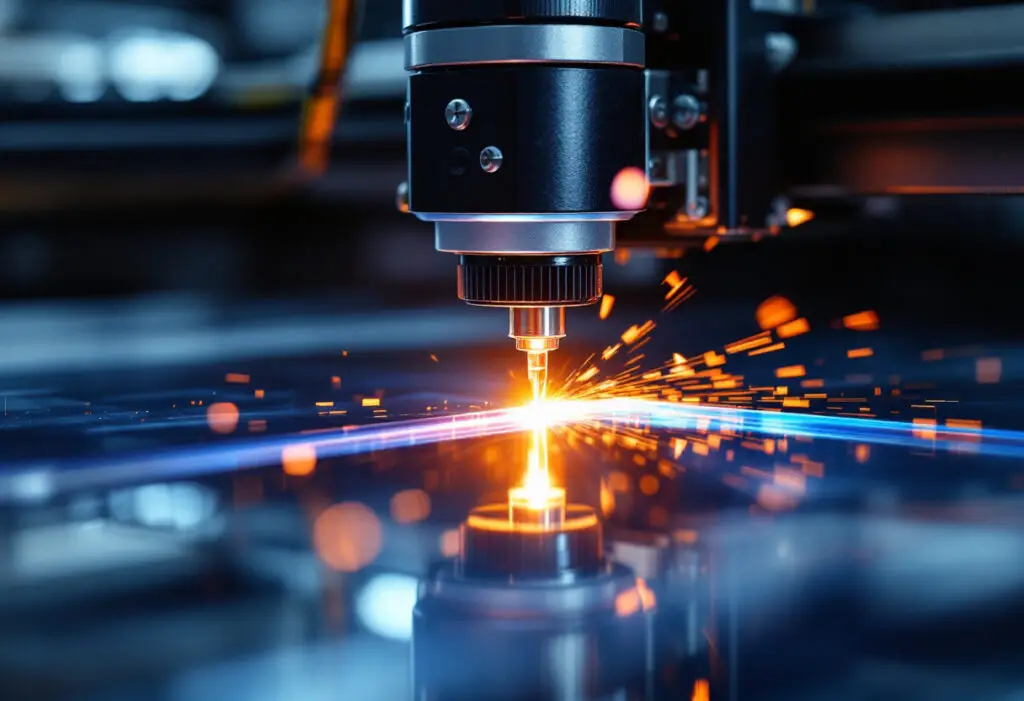

Laser cutting uses a focused beam of high-intensity light (typically CO2 at 10.6-micron wavelength) to vaporize or melt material along the cut line. The kerf is extremely narrow (0.2–0.5mm), the process is contactless, and for acrylic it produces a flame-polished edge requiring no secondary finishing.

Edge finish on acrylic: Laser wins. CO2 laser cutting produces a flame-polished, optically clear edge that routing cannot achieve without significant secondary polishing.

Material range: Routing wins. Routing processes virtually any thermoplastic regardless of thickness, including materials laser cutting handles poorly or cannot cut at all — polycarbonate, PVC, UHMW, nylon, and most engineering plastics.

Polycarbonate edge quality: Routing wins. Laser cutting polycarbonate produces a frosted, stress-crazed edge. Routing followed by hand polishing produces better results.

Fine detail and tight internal radii: Laser wins. The narrow kerf produces sharp internal corners and fine detail that a router bit's diameter physically prevents.

Thick material: Routing wins. Beyond approximately 1 inch, laser speed drops dramatically and edge quality degrades. Routing handles any practical thickness with consistent quality.

Heat-affected zone: Routing wins. Laser cutting introduces a HAZ that can cause stress or microcracking. Routing is a cold-cutting process with no HAZ.

PVC and chlorinated plastics: Routing wins. Laser cutting PVC generates chlorine gas — a serious health hazard. PVC must never be laser cut.

3D operations: Routing wins exclusively. Laser is a through-cut process only. Pocketing, controlled-depth engraving, and 3D contouring require routing.

Laser cutting earns its specification in acrylic fabrication above almost everything else. When display cases, optical components, lighting diffusers, awards, or architectural details require edges that are visually clear and polished without secondary finishing, CO2 laser cutting of acrylic is the process of choice.

Laser cutting is also correct when intricate geometry is required in thin acrylic or PETG sheet — fine lettering, tight nested profiles, small-radius internal corners, or detailed decorative patterns that a router bit's minimum diameter would distort or prevent.

CNC routing is correct for the majority of engineering plastic fabrication: any material that cannot be laser cut safely (PVC, CPVC, filled plastics), any thickness above approximately 1 inch, any geometry requiring depth-controlled operations, and any material where a heat-affected zone would compromise performance.

Routing also holds the advantage when the edge finish requirement does not demand optical clarity — a routed edge that will be installed inside an assembly, painted, or bonded does not benefit from laser cutting's acrylic edge advantage.

Include material type and grade, sheet thickness, finished dimensions and tolerances, quantity, and required edge finish. If edge clarity is important (display/optical applications in acrylic), specify optically polished edges — this directs to laser cutting for acrylic or mechanical polishing for other transparent materials.

If the part will be bonded, painted, or installed hidden, a standard machined edge is sufficient and CNC routing is the appropriate process for most materials.

Plastic-Craft Products offers both processes in-house across their complete material inventory — from standard acrylic to UHMW, nylon, Delrin, PEEK, phenolic, PVC, and polypropylene. No minimum order, single-piece prototypes through full production runs.
