Polycarbonate
Showing all 10 results
-
Polycarbonate Machine Grade Sheet
Select options This product has multiple variants. The options may be chosen on the product page -
Polycarbonate Transparent Sheet
Select options This product has multiple variants. The options may be chosen on the product page -
Polycarbonate White Translucent Sheet
Select options This product has multiple variants. The options may be chosen on the product page -
Polycarbonate Black Opaque Sheet
Select options This product has multiple variants. The options may be chosen on the product page -
Polycarbonate Abrasion Resistant Clear Sheet
Select options This product has multiple variants. The options may be chosen on the product page -
Polycarbonate Abrasion Resistant (AR-2) + UV Coating Clear Sheet
Select options This product has multiple variants. The options may be chosen on the product page -
Polycarbonate Prismatic Lighting Panel Clear Sheet
Select options This product has multiple variants. The options may be chosen on the product page -
Polycarbonate Round Rod
Select options This product has multiple variants. The options may be chosen on the product page -

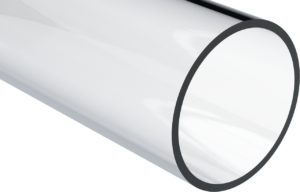

Polycarbonate Clear Round Tube
Select options This product has multiple variants. The options may be chosen on the product page -

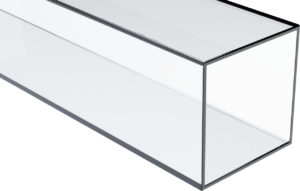

Polycarbonate Clear Square Tube
Select options This product has multiple variants. The options may be chosen on the product page
LEARN MORE ABOUT POLYCARBONATE
Polycarbonate
Polycarbonate, also known as bisphenol A (BPA), was independently synthesized by polymer chemists Dr. H. Schnell of Bayer AG, Germany and Dr. Daniel W. Fox of General Electric Company, USA in 1953.
Strength/Durability
Polycarbonate is a virtually unbreakable plastic and its variations are fashioned into eyewear lenses, protective equipment including bullet-proof glass, numerous medical devices, and can also be used as a building material in greenhouses. It can be utilized through glazing applications, digital media such as CDs, DVDs, and Blu-ray discs, as well as outdoor lighting fixtures.
Common Uses
- Roofing panels
- Windows
- Siding
- Room dividers
- Bullet resistance
- Electronics
- Auto parts
- Agriculture
Maintenance
Polycarbonate is simple to clean and polish using a clean cloth and cleaning compounds. It is possible to remove light scratches from polycarbonate with special abrasive compounds.
Polycarbonate Properties
| Property | Acrylic |
|---|---|
| Tensile Strength (psi) | 9,500 psi |
| Flexural Modulus of Elasticity (psi) | 345,000 psi |
| Izod Impact (ft-lbs/in) | 12.0 - 16.0 ft-lbs/in |
| Heat Deflection Temperature (°F) | 280 / 270 °F |
| Water Absorption (%) | 0.15 % |
| Light Transmittance (%) | 86 % |
| Haze (%) | <1 % |
| Property | Acrylic |
|---|---|
| Specific Gravity | 1.20 |
| Water Absorption (%) | 0.15 % |
| Tensile Strength (psi) | 9,500 psi |
| Tensile Modulus of Elasticity (psi) | 345,000 psi |
| Tensile Elongation (%) | 135 % |
| Flexural Strength (psi) | 13,500 psi |
| Flexural Modulus of Elasticity (psi) | 345,000 psi |
| Compressive Strength (psi) | 12,500 psi |
| Hardness (M, Shore D) | M70, Shore D 80 |
| Izod Impact (ft-lbs/in) | 12.0 - 16.0 ft-lbs/in |
| Property | Acrylic |
|---|---|
| Coefficient of Linear Thermal Expansion (in/in/°F x 10-5) | 3.8 in/in/°F x 10-5 |
| Heat Deflection Temperature (°F) | 280 / 270 °F |
| Max Continuous Service Temperature in Air (°F) | 240 °F |
| Dielectric Strength (V/mil) | 380 V/mil |
Light Transmission
A choice of three.
Polycarbonate is capable of transmitting light within the 80 to 90 percent range, which is sufficient for greenhouses. Compared to glass, the lighter weight of polycarbonate allows more total light to enter the greenhouse. Less framing is required to hold the polycarbonate in place.
UV Resistant Polycarbonate
Display and protect.
UV resistant polycarbonate is a transparent extruded polycarbonate sheet with extra protection against UV radiation. It remains unalterable up to temperatures of 120°C, always maintaining an exceptional surface and transparency.
Polycarbonate as a material blocks almost the entire relevant UV spectrum.
- Suitable for outdoor use
- Resistance to high temperatures
- Possible coloring
Polycarbonate Tubes
Built tough.
Polycarbonate is a versatile thermoplastic which may be extruded for applications which require superior strength, high temperature resistance, high impact resistance, and optical clarity. Due to its toughness and durability, polycarbonate tubing is easily drilled, machined, notched, and bent.

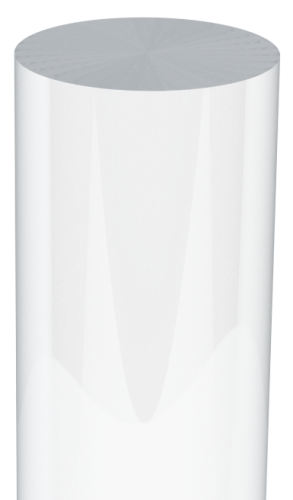

Polycarbonate Rods
Built tough.
Polycarbonate rod is a semi-transparent thermoplastic that exhibits high impact resistance, good machinability, and excellent electrical properties
Machine-grade polycarbonate rod has excellent dimensional stability and good strength and stiffness over a wide range of temperatures. Polycarbonate offers very high impact strength, high modulus of elasticity, and a 270°F (132°C) heat deflection temperature at 264 psi.
These additives make plastic rod useful for a broad range of industries such as aerospace, packaging, conveying, food processing equipment, heavy equipment and machinery, scientific instrumentation, facilities MRO, and more.
