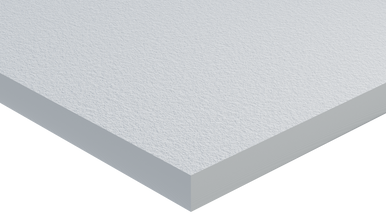

Low-Density Polyethylene (LDPE) Natural Sheet

SKU N/A Categories , ,

$0.00

$0.00

Low-Density Polyethylene (LDPE) Stress Relieved Sheet Description

Polyethylene or polythene is the most commonly produced plastic. It is a polymer, primarily used for packaging (plastic bags, plastic films, geomembranes, and containers including bottles, etc.). As of 2017, over 100 million tons of polyethylene resins are produced annually, accounting for 34% of the total plastics market.

PE is usually a mixture of similar polymers of ethylene, with various values of n. It can be low-density or high-density: low-density polyethylene is extruded using high pressure (1000–5000 atm) and high temperature (520 K), while high-density polyethylene is extruded using low pressure (6–7 atm) and low temperature (333–343 K). Polyethylene is usually thermoplastic, but it can be modified to become thermosetting instead, for example, in cross-linked polyethylene.

LDPE (low-density polyethylene) is a versatile, soft, flexible, lightweight plastic material that is easy to fabricate and form. LDPE is noted for its low temperature flexibility, toughness, and corrosion resistance. It is not suited for applications where stiffness, high-temperature resistance, and structural strength are required. LDPE also has good chemical and impact resistance.

Notable Attributes

Notable Attributes

  • Flexible
  • Easy to fabricate and form
  • Low temperature flexibility
  • Corrosion resistance
  • Good chemical and impact resistance
  • Lightweight and tough
  • RoHS compliant
  • Thermoplastic
  • Low moisture absorption
  • Excellent electrical insulating properties

Applications

Applications Include:

  • Packaging Films and Wraps
  • Containers, trays, squeezable bottles
  • Grocery, trash, and cleaner bags
  • Backyard Slides
  • Electrical Wire Insulation
  • Orthotics and prosthetics
  • Geomembranes
  • Chemical-resistant liners
  • Waterproofing membranes

Technical Specifications

Technical Specifications

PropertyValue
Density0.924 g/cm³
Melt Index, Condition 190 °C / 2.16 kg1.3 g/10 min
Tensile Strength @ Yield2400 psi
Ultimate Elongation600%
Compressive Stress @Yield200 psi
Durometer Hardness55 Shore D
Flexural Modulus50,000 psi
Vicat Softening Temperature219 °F
Heat Deflection Temperature @66 psi124 °F
Brittleness Temperature< -103 °F
Dielectric Strength500 V/mil
Dielectric Constant2.28
Volume Resistivity6 X 1015 ohm-cm

View Full Technical Specifications

Safety Data Sheet (SDS)

Safety Data Sheet (SDS)

For detailed safety information regarding LDPE, please refer to the Safety Data Sheet (SDS). This document provides comprehensive details on handling, storage, and emergency measures related to LDPE.
