Vacuum Forming Services: From Flat Sheet to 3D Shapes

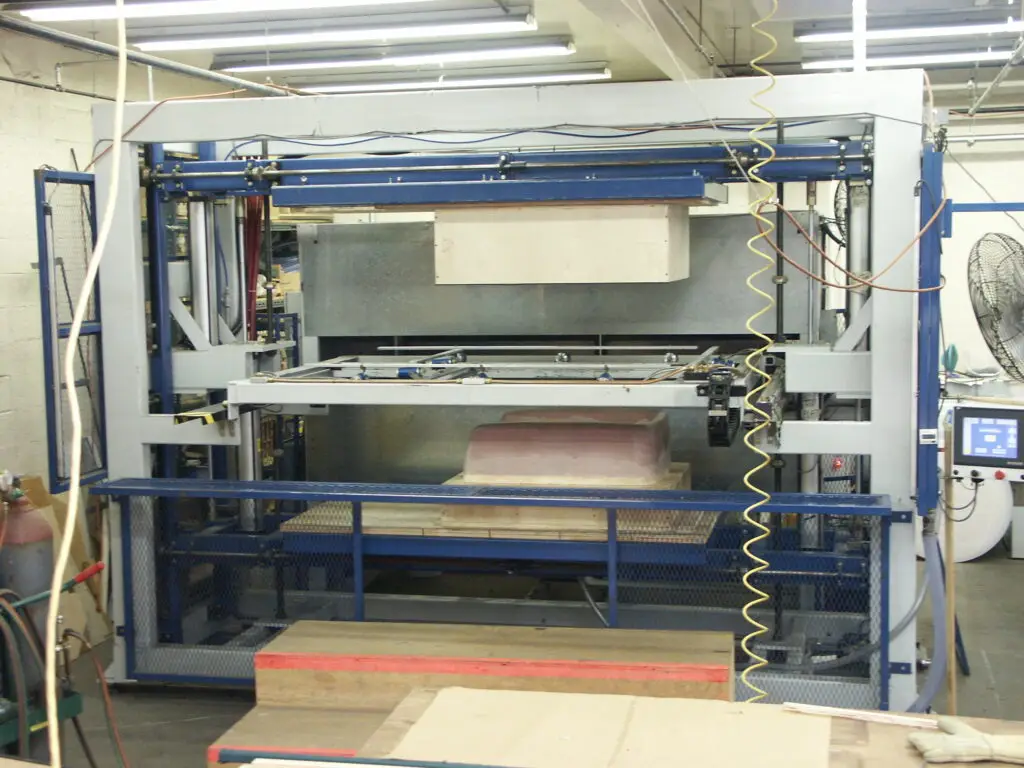

Vacuum forming is a thermoforming process in which a flat thermoplastic sheet is clamped in a frame, heated until it reaches its forming temperature, and then drawn down over or into a mold by applying vacuum pressure beneath the softened sheet. Atmospheric pressure forces the heated plastic to conform precisely to the mold surface, after which the sheet cools and retains the three-dimensional shape of the tool.

The formed part is then trimmed to its final dimensions by CNC routing, die cutting, or hand trimming depending on the part geometry and production volume.

Heat forming is closely related but uses direct mechanical pressure, matched tooling, or a combination of heat and forming fixtures rather than vacuum alone. Both processes share the same fundamental characteristic: they start with flat sheet stock and produce three-dimensional geometry without the high tooling cost and lead time of injection molding.

The process is limited to geometries achievable from sheet stock — open-faced shapes, relatively shallow draws relative to part width, and designs without enclosed volumes or true undercuts. Within those constraints, vacuum forming offers exceptional design flexibility, rapid tooling, and the ability to form virtually any thermoplastic available in sheet form.

Tooling cost: Vacuum form tooling in aluminum or composite can be produced for a fraction of the cost of an injection mold — often by an order of magnitude or more for large parts. A vacuum form tool for a medium-sized equipment enclosure might cost $3,000 to $15,000; the injection mold equivalent would cost many times that.

Tooling lead time: Vacuum form tooling can be designed, machined, and ready for first articles in one to three weeks for most part geometries. Injection mold tooling typically requires six to sixteen weeks from design approval to first production samples.

Material flexibility: Vacuum forming can process virtually any thermoplastic available in sheet form — including materials that are difficult or unavailable in injection-moldable grades, or where the specific properties of a stocked sheet grade are required in the finished part.

All amorphous thermoplastics and most semi-crystalline thermoplastics can be vacuum formed from sheet stock. The most commonly formed materials are:

HDPE and polypropylene: Semi-crystalline materials requiring more precise temperature control. Used for chemical-resistant trays, automotive underhood components, and chemical resistance applications.

PVC: Good formability, widely used for trays, blisters, and protective covers. Note that PVC cannot be laser cut after forming — CNC routing is the correct trimming process for all formed PVC components.

For aerospace and defense programs requiring material traceability and certified process documentation, Plastic-Craft Products holds ISO 9001:2015 and AS9100D quality management certifications covering vacuum and heat forming operations. The AS9100D certification covers the complete scope from raw sheet to finished formed component.

Medical and pharmaceutical applications represent another area where vacuum forming's design and material flexibility is particularly valuable. Formed instrument trays in PETG or HDPE, sterile packaging components, and equipment covers for medical devices can all be produced in FDA-compliant materials with the documentation trail that regulated medical device manufacturing requires.

The most useful information to provide upfront is part geometry (a drawing, CAD file, or physical sample), the material specification including type, grade, color, and thickness, the required production quantity both initially and annually, and the required dimensional tolerances for the finished formed part.

Draft angles are a critical design consideration that buyers new to the process sometimes overlook. The mold geometry must include sufficient draft — typically a minimum of 3 to 5 degrees on vertical walls — to allow the formed part to release from the tool cleanly without distortion.
