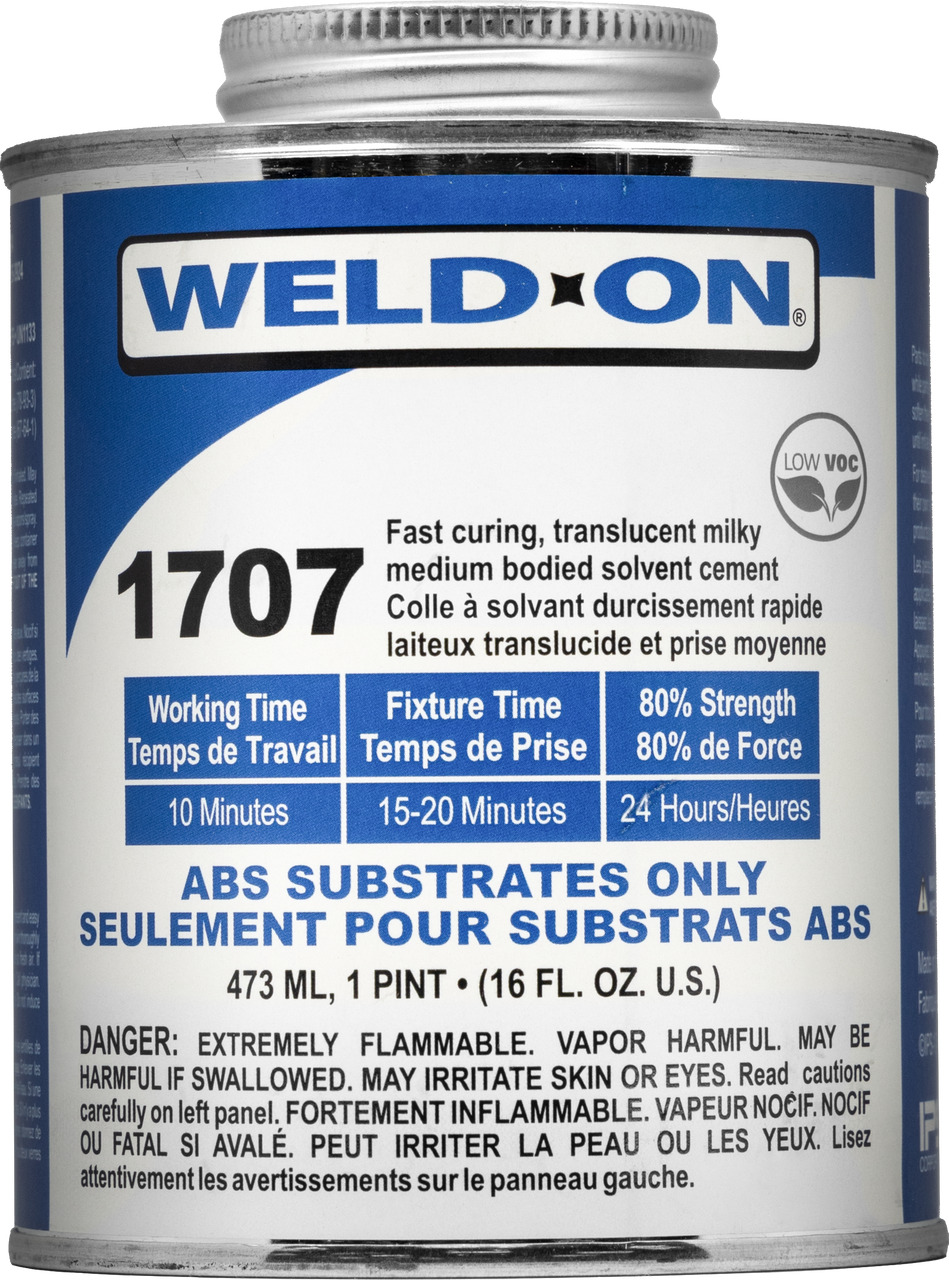

SCIGRIP IPS Weld-On #1707 - Multi Purpose Solvent Cement
- Weight:
- 0.00 LBS
Description
Weld-On 1707 is a milky, syrupy, medium bodied, fast drying solvent cement. It forms high strength bonds in joining ABS materials. The properties of its bonds are high strength, rigid, generally free from crazing. Chemical, physical, and electrical properties are similar to those of ABS materials. The cure is effected by dissipation of the solvent from the cement and surrounding parts softened by it. Initial bond will usually take place within minutes and may be of sufficient strength for handling. Bond strength will be considerable in a few hours and will reach high strength in 24 to 48 hours. Thereafter, strength will continue to increase gradually for some weeks.
Substrate Recommendations
Weld-On 1707 is formulated for bonding ABS plastics to itself only.
Bonding Recommendations
Weld-On 1707 is recommended as a general usage for ABS where a bodied cement is desired. It is suitable for a wide variety of applications. It may be used on both large and small assemblies, large displays, signs, lighting fixtures, housewares, large and small containers, toys, electrical or electronic assemblies, decorator items, etc.
Technical
Typical Bond Strength†
| Substrate Material | Aged Bond Strength, lbs/in2 (kg/cm2) | ||
| 2 Hours | 24 Hours | 1 Week | |
| ABS | 300 | 1,050 | 1,200 |
† Substrate thickness: 0.25 inch (0.64 cm). Bond area: 1.0 in² (6.45 cm²). Ultimate Bond Strength is defined as strength achieved after 24-hour room temperature cure.
Adhesive Properties and Characteristics @ 73°F (23°C)
| Color | Milky |
| Viscosity | 1300 ± 150 cps |
| Reactivity | 10 Minutes |
| Working Time | 10 Minutes |
| Fixture Time (Time to reach 80% of ultimate strength) | 20 Minutes |
| Time to reach Ultimate Bond Strength | 24 Hours |
| Specific Gravity (g/cc) | 0.900 ± 0.01 |
| Coverage | 10 mil: 35 sq ft/pint 280 sq ft/gallon 20 mil: 17 sq ft/pint 140 sq ft/gallon |
Directions
Directions for Use
Joint Preparation: Parts to be joined should fit without forcing. Surfaces should be clean and smooth. A good machine finish or sanding with 200-400 grit sandpaper should be satisfactory. Surfaces “as molded or extruded” should not require additional preparation.
Applicaton of Cement: Weld-On 1707 can be applied by brush, spray, roller coating, pump-type oil cans and other devices. Cement may be applied to one or both surfaces.
Assembly of Parts: Assemble while parts are still wet. If cement is applied to one surface, let the two surfaces be in gentle contact for a few seconds to allow the cement to soften the dry surface. Then press parts together in firm contact. If both of the parts have been coated, they may be brought firmly together immediately. The application of pressure of 2 to 10 lbs per square inch should materially increase bond strength. Spring-loaded clothespins may be very suitable as clamps. The length of time required for clamp or jig pressure will vary. A few hours or more may be needed for difficult joints, but only a few minutes for parts that fit well and have modest load requirements.
Shelf Life
Three years expectancy in tightly sealed containers. Stability of the product is limited by the permanence of the container and the evaporation of the solvent when the container is open. Evaporation of solvent will cause the cement to thicken and reduce its effectiveness.
Safety
Safety and Environmental Precautions
This product is a flammable, fast evaporating solvent cement. It is considered a hazardous material. In conformance with the Federal Hazardous Substance Labeling Act, the following hazards and precautions are given. Purchasers who may re-package this product must also conform to all local, state, and federal labeling, safety and other regulations. VOC emissions do not exceed 400 grams per liter.
DANGER: EXTREMELY FLAMMABLE. VAPOR HARMFUL. MAY BE HARMFUL IF SWALLOWED. MAY IRRITATE SKIN OR EYES.
Keep out of reach of children. Do not take internally. Keep away from heat, spark, open flame and other sources of ignition. Keep container closed when not in use. Store away from direct sunlight between 40º F – 110º F (5º C – 43ºC). Use only with adequate ventilation. Avoid breathing of vapors. Atmospheric levels should be maintained below established exposure limit values contained in Section II and VIII of Material Safety Data Sheet. If airborne concentrations exceed those limits, use of a NIOSH-approved organic vapor cartridge respirator with full face-piece is recommended. The effectiveness of an air-purifying respirator is limited. Use it only for a single short-term exposure. For emergency and other conditions where shortterm exposure guidelines may be exceeded, use an approved positive pressure self-contained breathing apparatus. Do not smoke, eat or drink while working with this product. Avoid contact with skin, eyes and clothing. May cause eye injury. Protective equipment such as gloves, goggles and impervious apron should be used. Carefully read Material Safety Data Sheet and follow all precautions.
Contains Methyl Ethyl Ketone (78-93-3). Do not use this product for other than intended use.
“Title III Section 313 Supplier Notification:” This product contains toxic chemicals subject to the reporting requirements of Section 313 of the Emergency Planning and Community Right-to-Know Act of 1986 and of 40CFR372. This information must be included in all Material Safety Data Sheets that are copied and distributed for this material.
First Aid
Inhalation: If overcome with vapors, remove to fresh air. If not breathing, give artificial respiration. If breathing is difficult, give oxygen. Call physician.
Eye Contact: Flush with plenty of water for 15 minutes and call a physician.
Skin Contact: Wash skin with plenty of soap and water for at least 15 minutes. If irritation develops, get medical attention.
Ingestion: If swallowed, do not induce vomiting. Contact physician immediately.
