Mastering Precision: Gun Drilling a 1-Inch Clear Cast Acrylic Rod with a Perfectly Centered 0.375-Inch Hole
Precision Gun Drilling in Action: Crafting a 1" Clear Cast Acrylic Rod with a 0.375" Central Hole

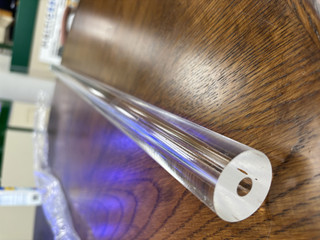

At Plastic-Craft, we’re known for our expertise in custom plastic fabrication and machining, with a special emphasis on clear cast acrylic. One of our recent precision projects involved gun drilling a 1-inch diameter clear cast acrylic rod with a 0.375-inch diameter hole through its center. This seemingly straightforward task required meticulous planning, advanced tooling, and specialized techniques to ensure the final product met our high standards for accuracy, clarity, and durability.
Why Use Gun Drilling for Acrylic?
Gun drilling is a high-precision machining process that’s ideal for creating long, narrow holes with remarkable accuracy and clarity. When drilling a clear cast acrylic rod, gun drilling offers several key benefits:
1. Perfectly Centered, Straight Hole Alignment
Acrylic, especially in rod form, demands precision drilling for functional and visual purposes. Gun drilling provides consistent alignment, ensuring that the hole is perfectly centered with no noticeable deflection, which is particularly important in clear acrylic, where any misalignment is highly visible.
2. Smooth, Polished Hole Interior
One of the unique advantages of gun drilling is the smooth, almost polished surface it leaves behind. This is essential in clear cast acrylic, where surface imperfections or roughness could affect both the aesthetics and structural integrity of the rod.
3. Effective Heat and Chip Management
Acrylic is sensitive to heat and can develop internal stress or cloudiness if temperatures get too high during drilling. Gun drilling allows us to manage heat and remove chips efficiently, preserving the acrylic’s clarity and strength throughout the process.
Project Specifications
- Material: Clear cast acrylic
- Outer Diameter (OD): 1 inch
- Inner Hole Diameter (ID): 0.375 inches
- Length: Variable depending on project requirements
This combination of a thick outer diameter and a smaller, precise internal diameter makes this project particularly challenging. Any deviation or imperfection would be clearly visible, so accuracy was crucial.
Key Considerations for Gun Drilling Acrylic Rods
Before drilling, we consider several important factors to ensure that the process preserves the clarity and integrity of the acrylic rod. Here’s what we focus on:
1. Material Selection: Clear Cast Acrylic
Why Clear Cast Acrylic? Clear cast acrylic is specifically chosen for its superior optical clarity and structural integrity. Extruded acrylic has inherent stress points that increase the likelihood of cracking or shattering, making it unsuitable for high-precision drilling.
2. Drill Bit Selection
Specialized Drill Bits for Plastics: Using the right drill bit is essential for high-quality results in acrylic. Standard metal gun drills are too aggressive for acrylic and can cause chipping or melting. For this project, we used carbide drill bits with geometries optimized for plastics, ensuring smooth cuts without excessive heat generation.
3. Coolant Choice
Coolant Compatibility: Clear cast acrylic is sensitive to certain coolants, which can cause clouding or micro-cracks. To maintain optical clarity, we use a compatible, water-soluble coolant or air cooling to dissipate heat without affecting the acrylic’s surface quality.
Step-by-Step Process for How Gun Drilling the Acrylic Rod Works
Step 1: Setup and Precise Alignment
Secure Mounting: The process is started by mounting the acrylic rod in a custom jig to hold it steady and perfectly aligned. Proper alignment ensures the hole is perfectly centered from end to end.
Alignment Calibration: The gun drill machine is carefully aligned with the center of the rod to ensure precision.
Step 2: Precision Drilling with Specialized Gun Drill Bit
Use of Acrylic-Specific Drill Bit: The use of a specially designed gun drill bit is crucial for plastics, it minimizes friction and keeps temperatures controlled to prevent melting or surface defects.
Consistent Drilling Speed: The gun drill rotates at a carefully controlled speed, with a slow feed rate to ensure a clean, consistent cut through the rod.
Step 3: Coolant Application for Temperature Control
Water-Soluble Coolant or Air Cooling: A compatible coolant is applied or another method is air cooling, This makes sure to keep the temperature low, preserving the clarity of the rod and ensuring a high-quality finish.
Step 4: Inspection and Quality Assurance
Concentricity and Straightness Check: After drilling, Plastic- Craft inspects the rod to ensure that the hole is centered and straight.
Clarity Inspection: We conduct a detailed clarity inspection to verify that the hole remains clear and defect-free.
Benefits of Gun Drilling a 1" Acrylic Rod with a 0.375" Hole
The advantages of gun drilling for this specific project include:
- Optical Clarity: Gun drilling produces a smooth, polished hole interior that requires little to no additional finishing, preserving the rod’s optical clarity.
- Perfectly Centered Hole: By aligning the drill precisely and using steady speeds, it is ensured that the hole remains centered.
- Structural Integrity: The controlled drilling process reduces the risk of micro-cracks, hazing, or surface stress, ensuring the rod’s strength and longevity.
Applications for Drilled Acrylic Rods
Drilled acrylic rods like this 1" clear cast acrylic rod with a central 0.375" hole are commonly used in various industries. Some potential applications include:
- Architectural Lighting: The drilled hole allows for LED or fiber optic cables to be inserted, creating illuminated rods that are popular in architectural and interior lighting design.
- Scientific Instruments: Precision-drilled acrylic rods are often used in lab equipment and research settings where clarity and structural integrity are essential.
- Fluid Monitoring Systems: Drilled acrylic rods are used in fluid systems, allowing operators to visually monitor flow through the transparent material.
Learn more about the industries we serve by visiting our Industries Page.
Why Choose Plastic-Craft for Precision Gun Drilling?
Plastic-Craft has extensive experience in precision drilling and machining for acrylic and other plastics. Our commitment to quality, combined with our advanced machinery and skilled technicians, ensures that we deliver flawless, high-precision results for projects across multiple industries.
If you’re considering a custom gun drilling solution or need help with a unique plastic fabrication project, contact us today to discuss your requirements. Our team of experts is ready to bring your vision to life with precision and professionalism.
